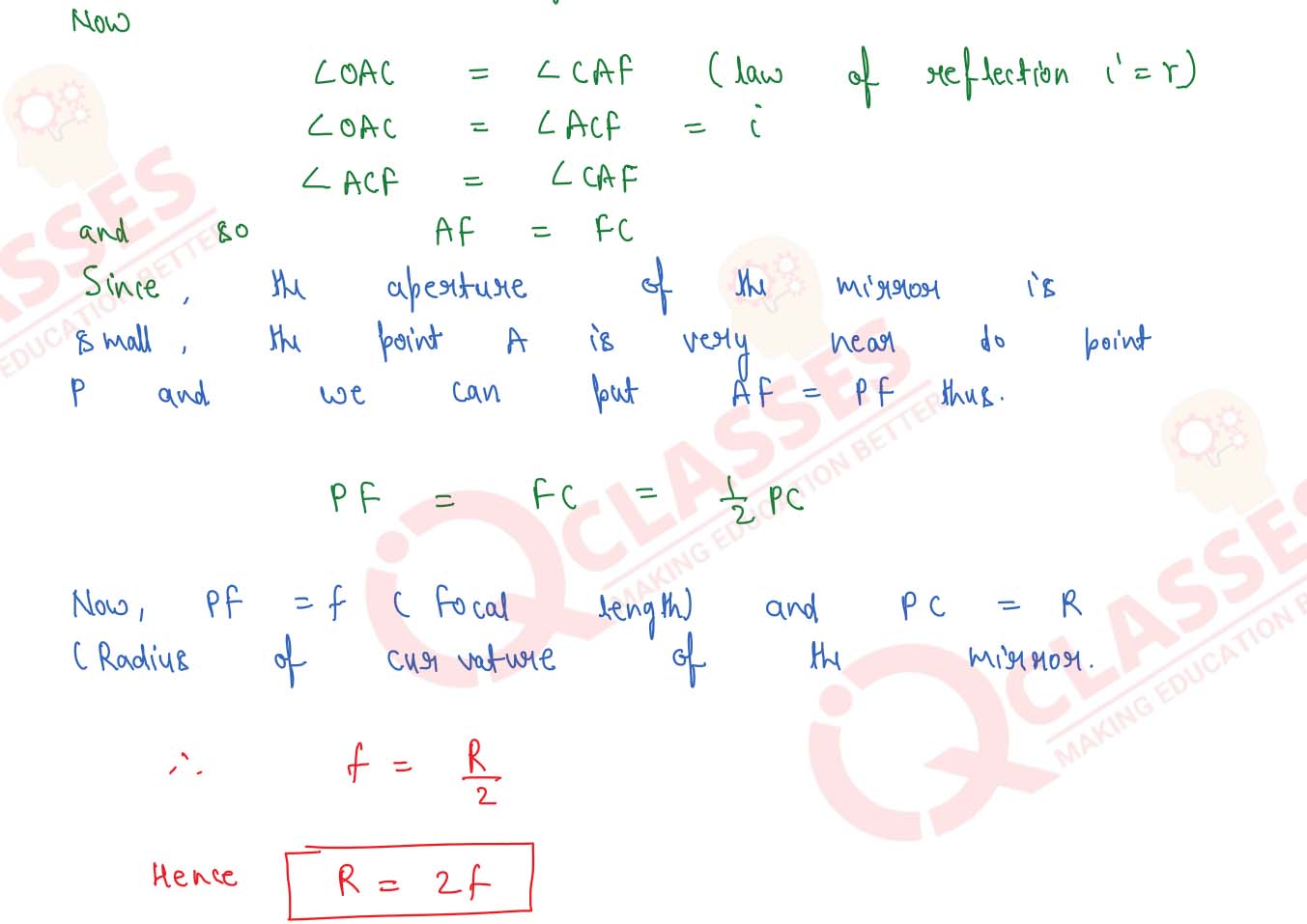

Q1 Prove that for a concave mirror, the radius of curvature is twice the focal length. Solution

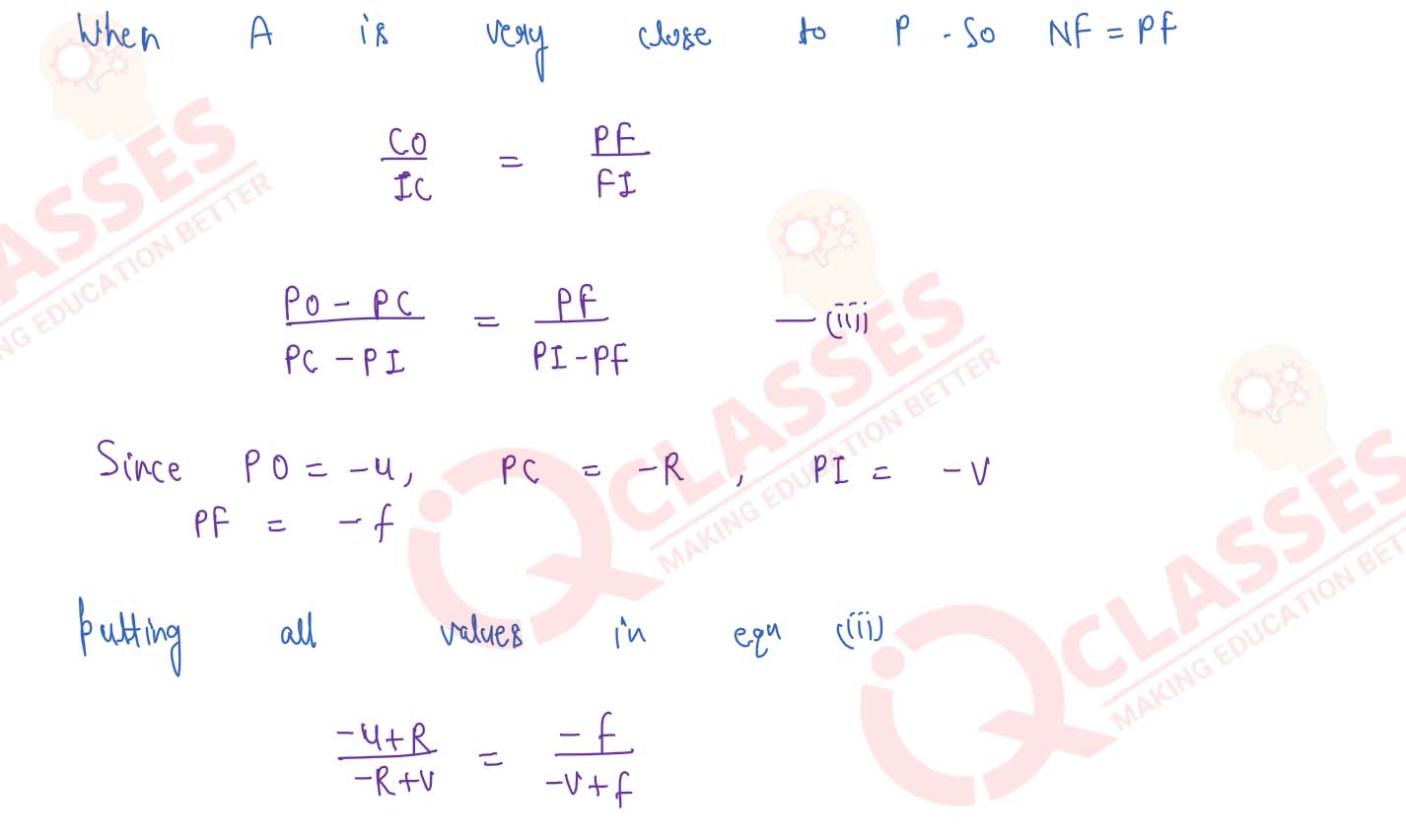

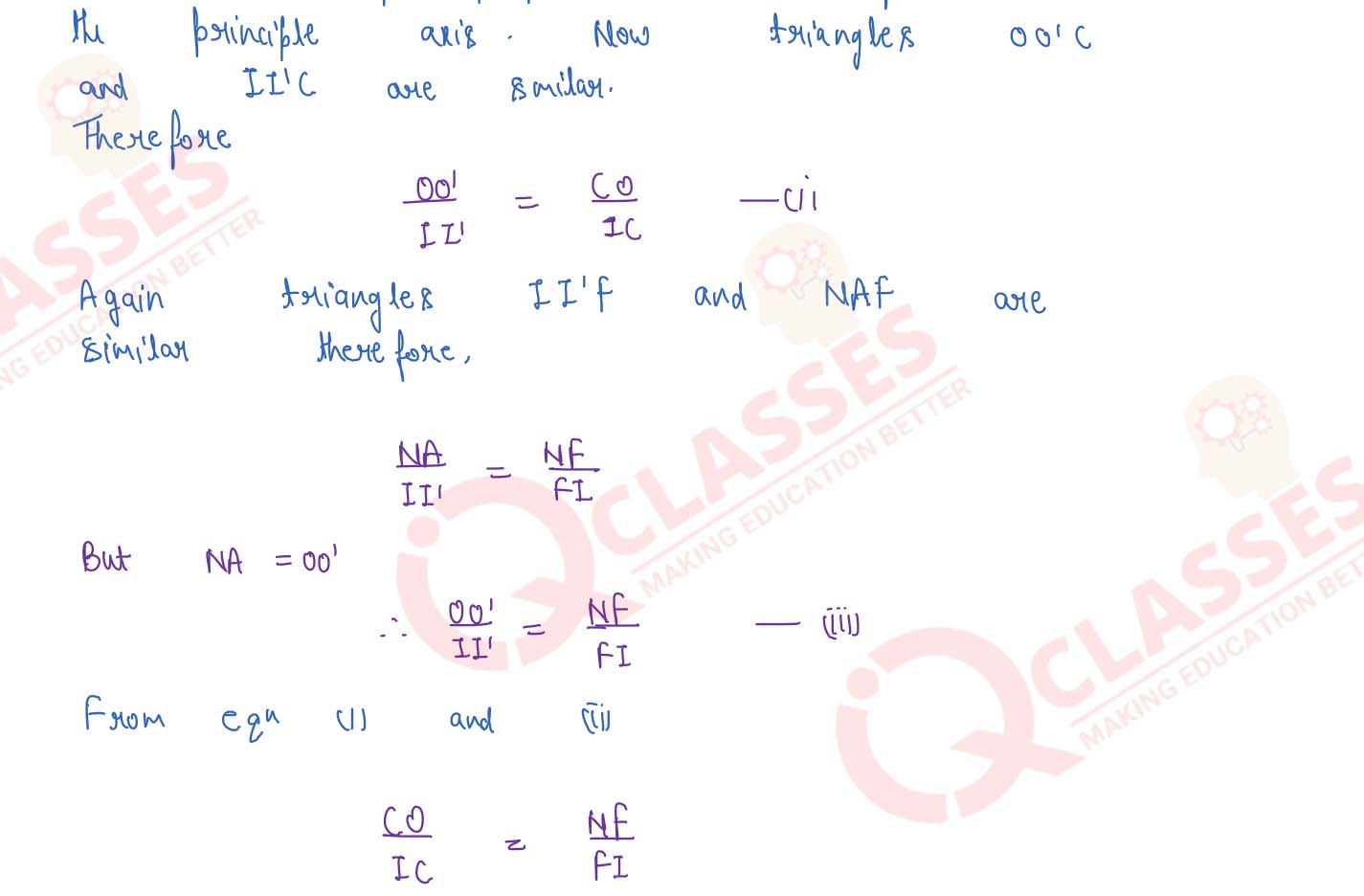

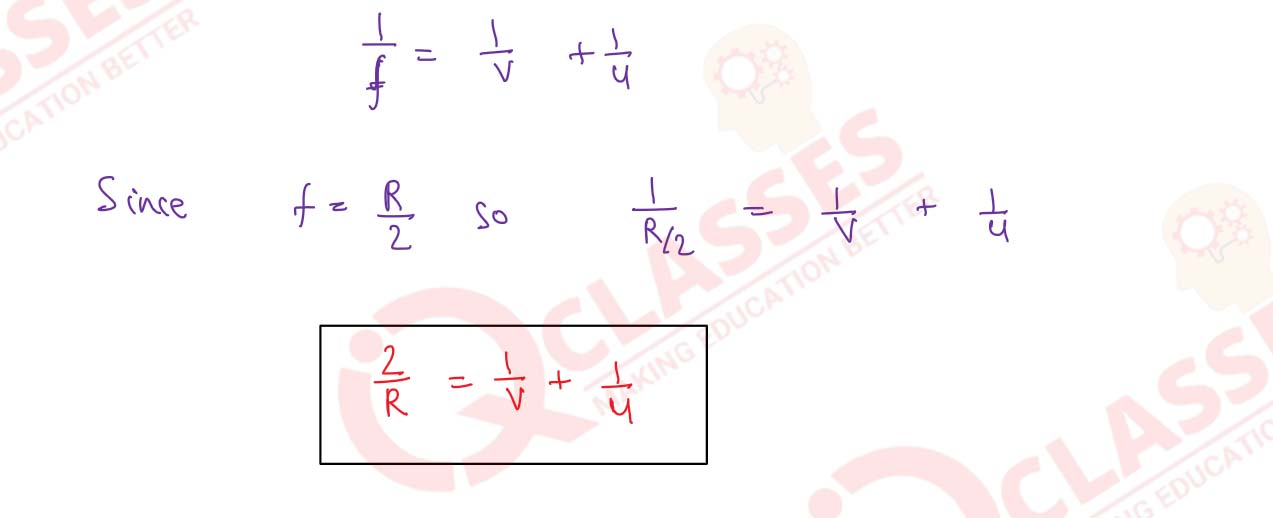

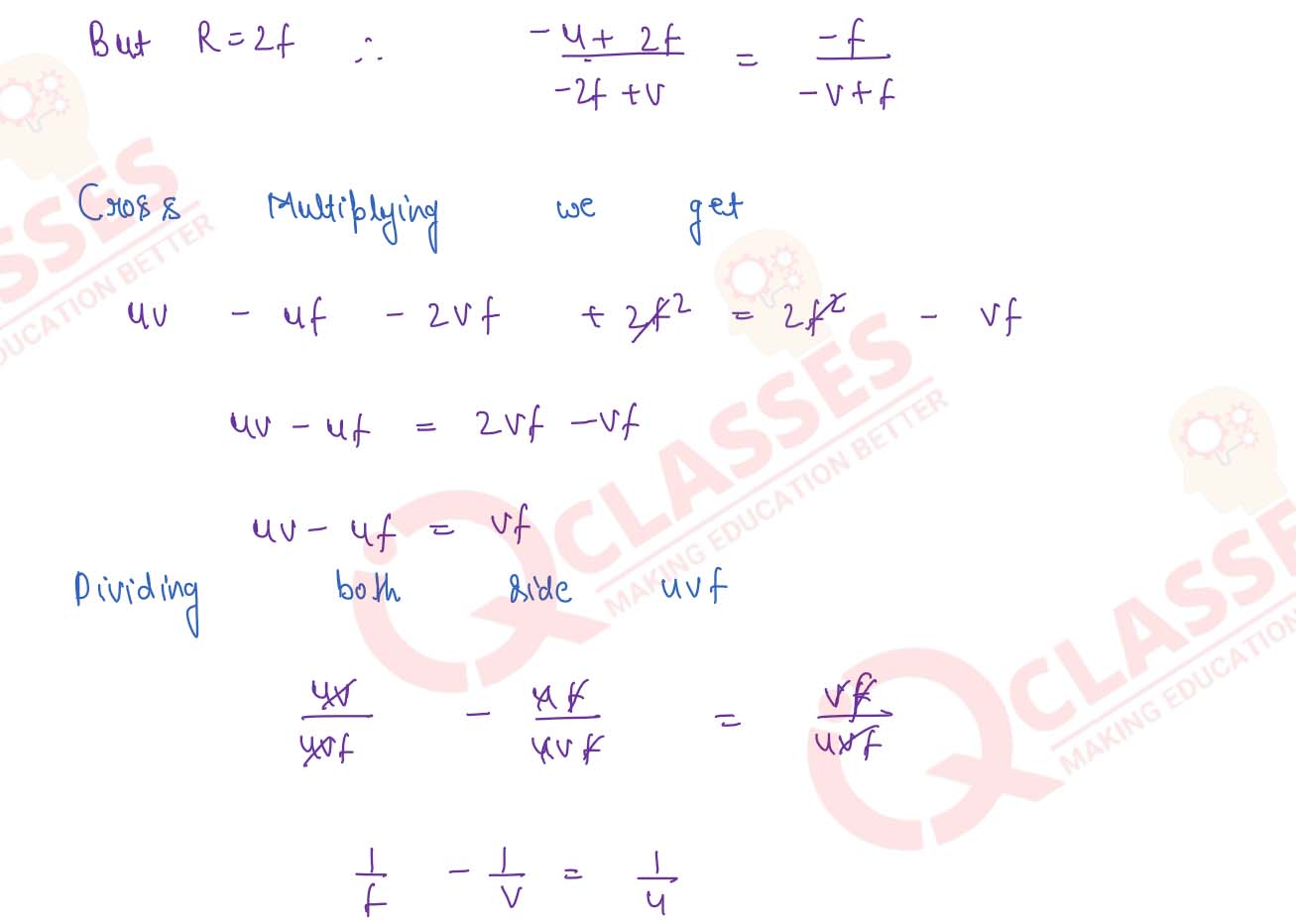

Q2 Establish the relation between object distance, image distance and radius of curvature for a concave mirror. Solution

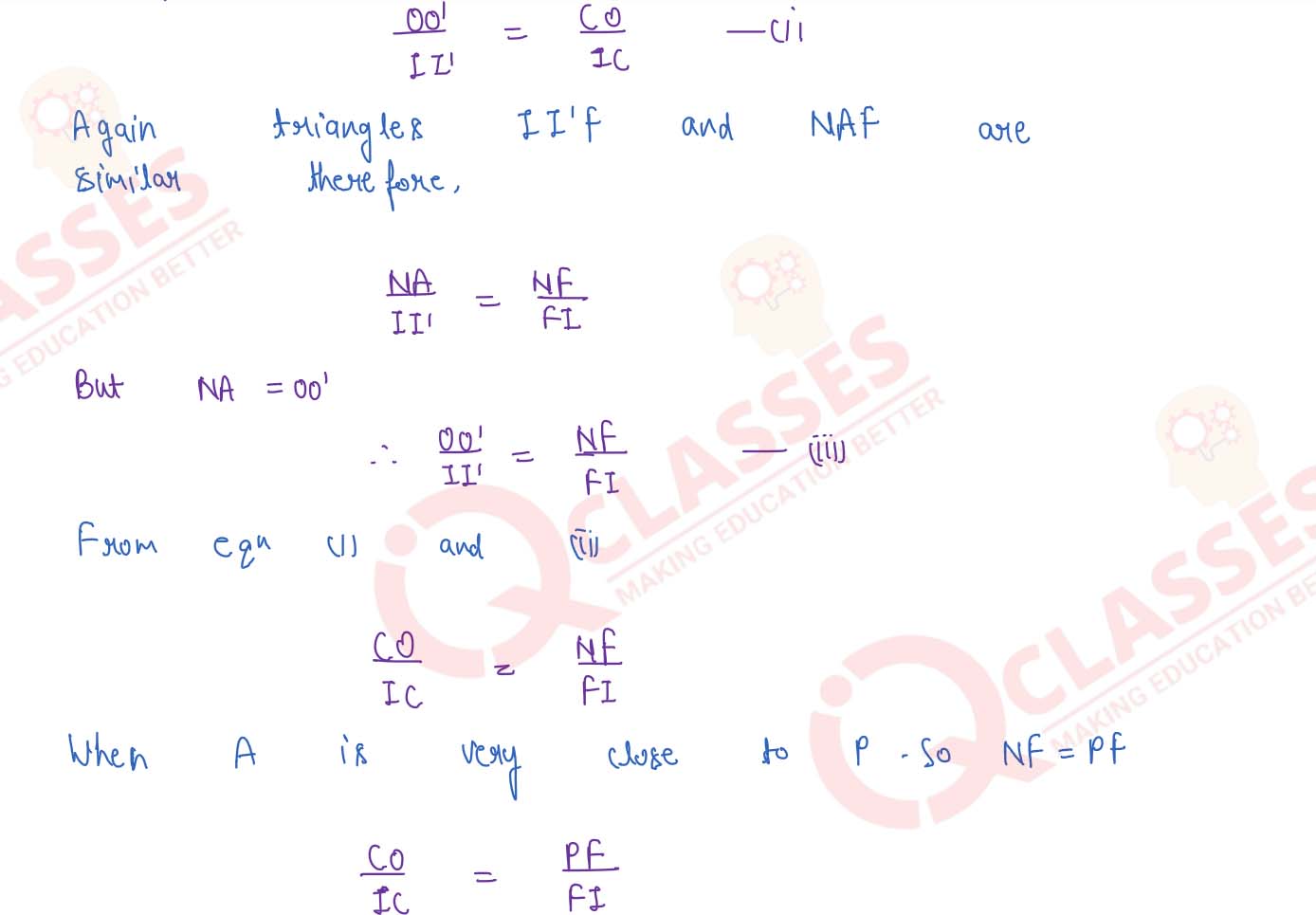

Q3 Draw a ray-diagram to show image formation of an object placed between the pole and the focus of a concave mirror. Derive the relation among u, v and f for this particular case. State the assumptions and sign convention used. Solution

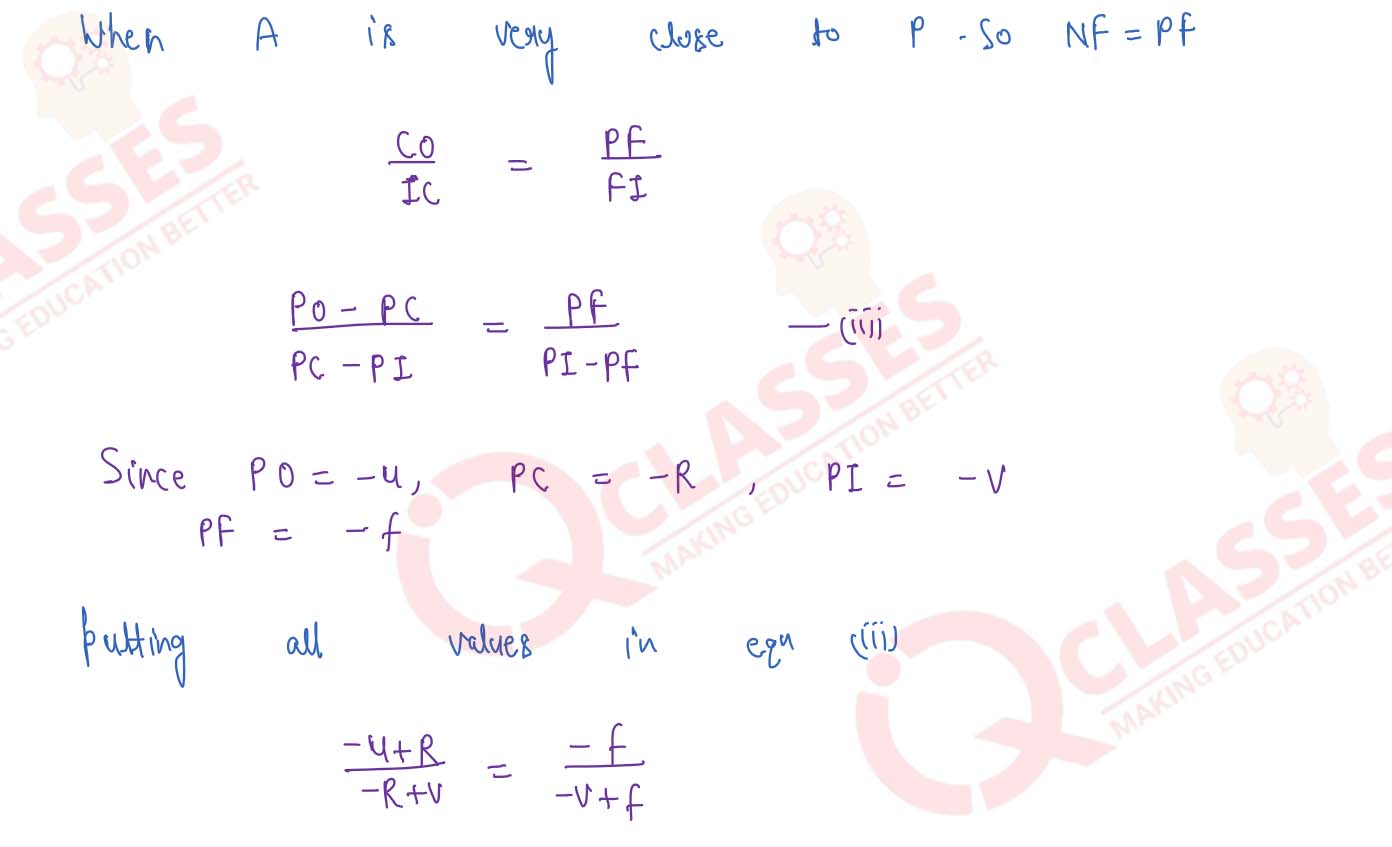

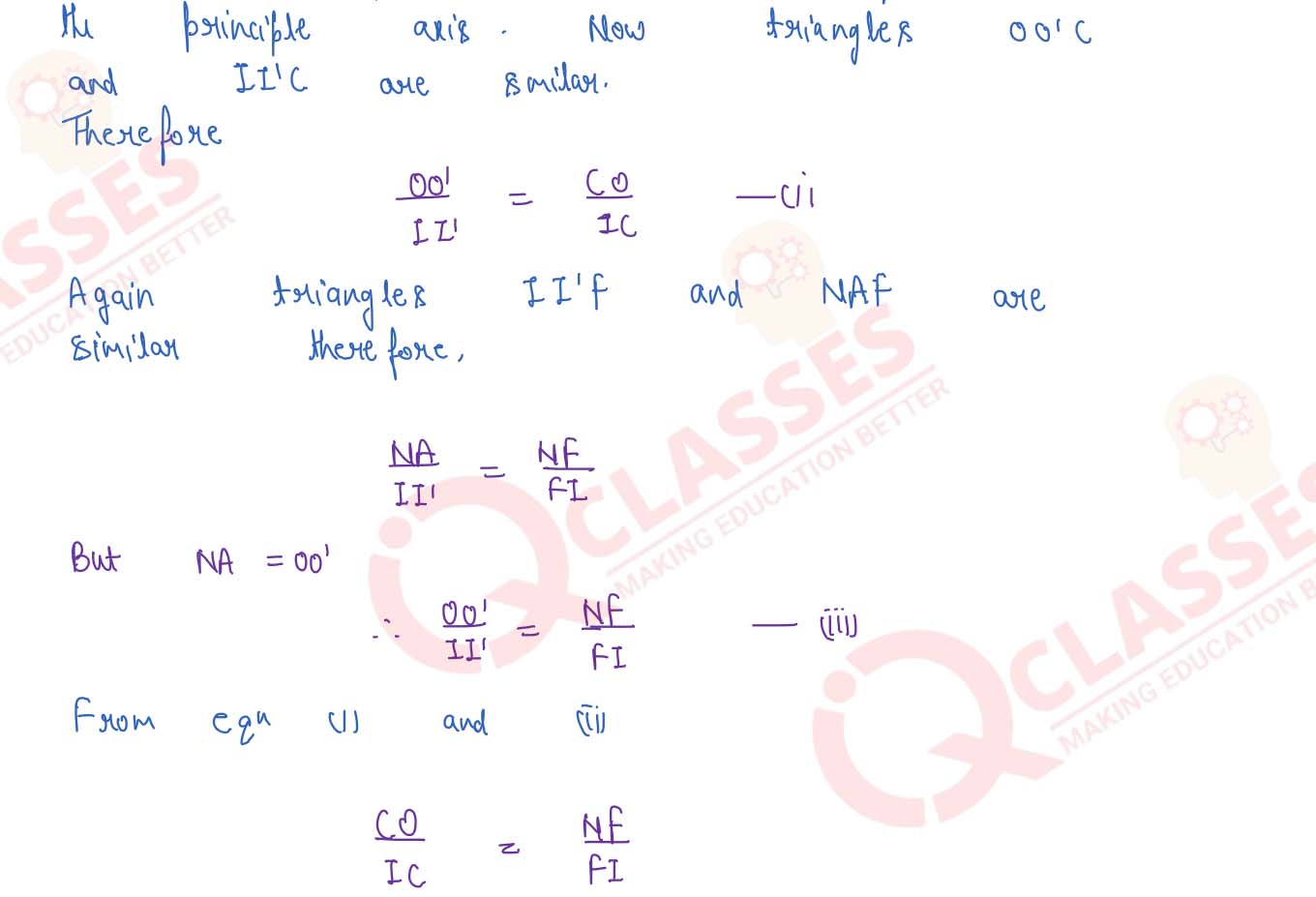

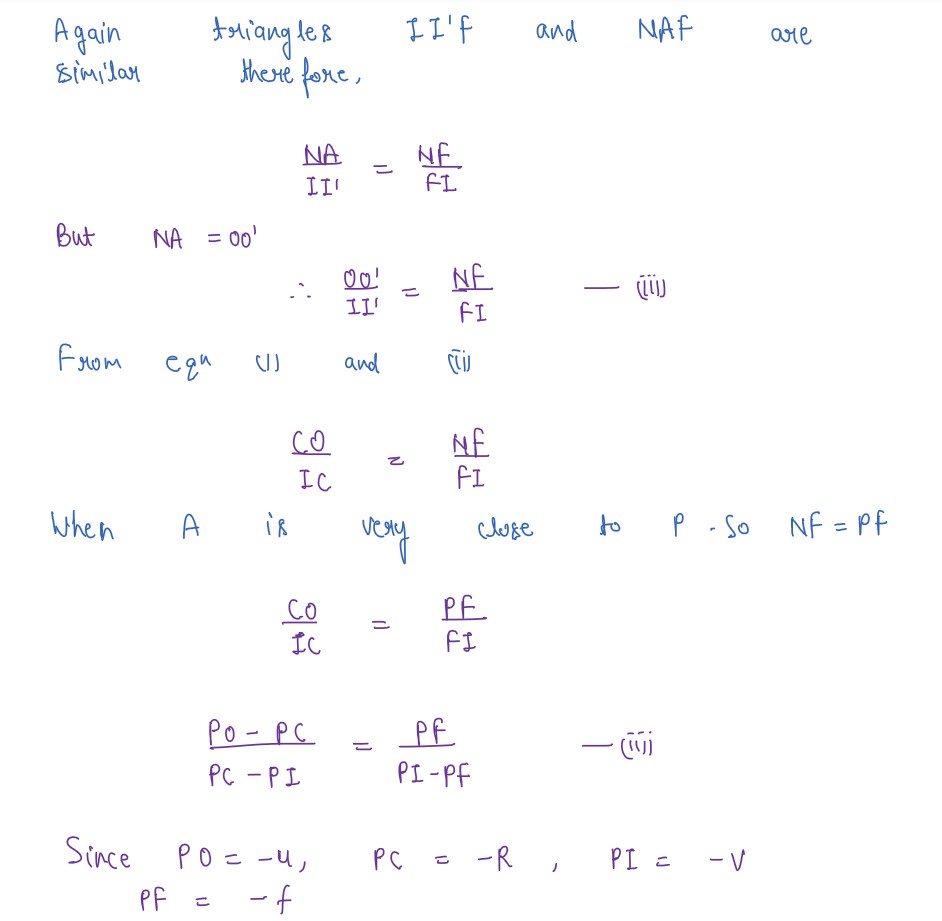

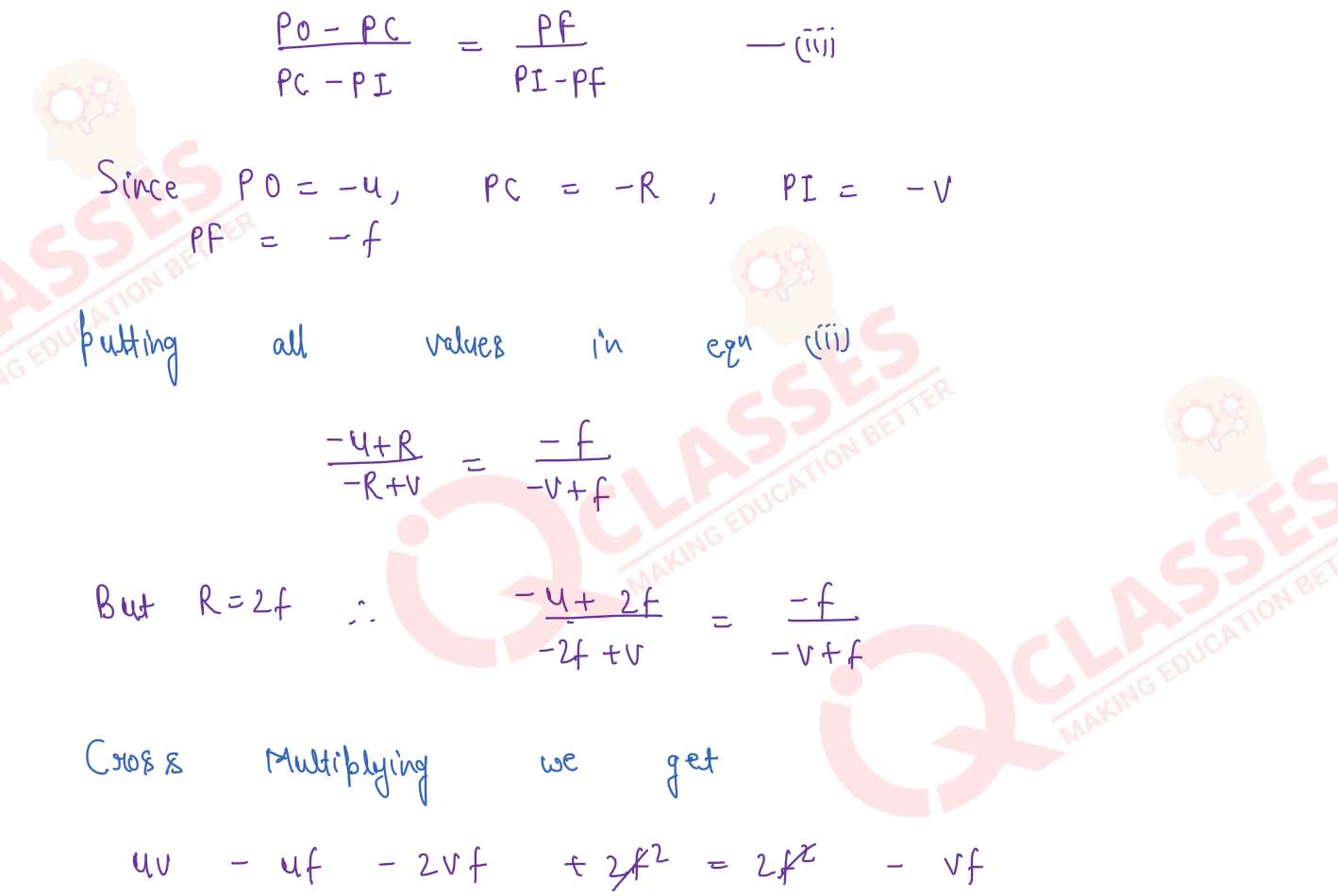

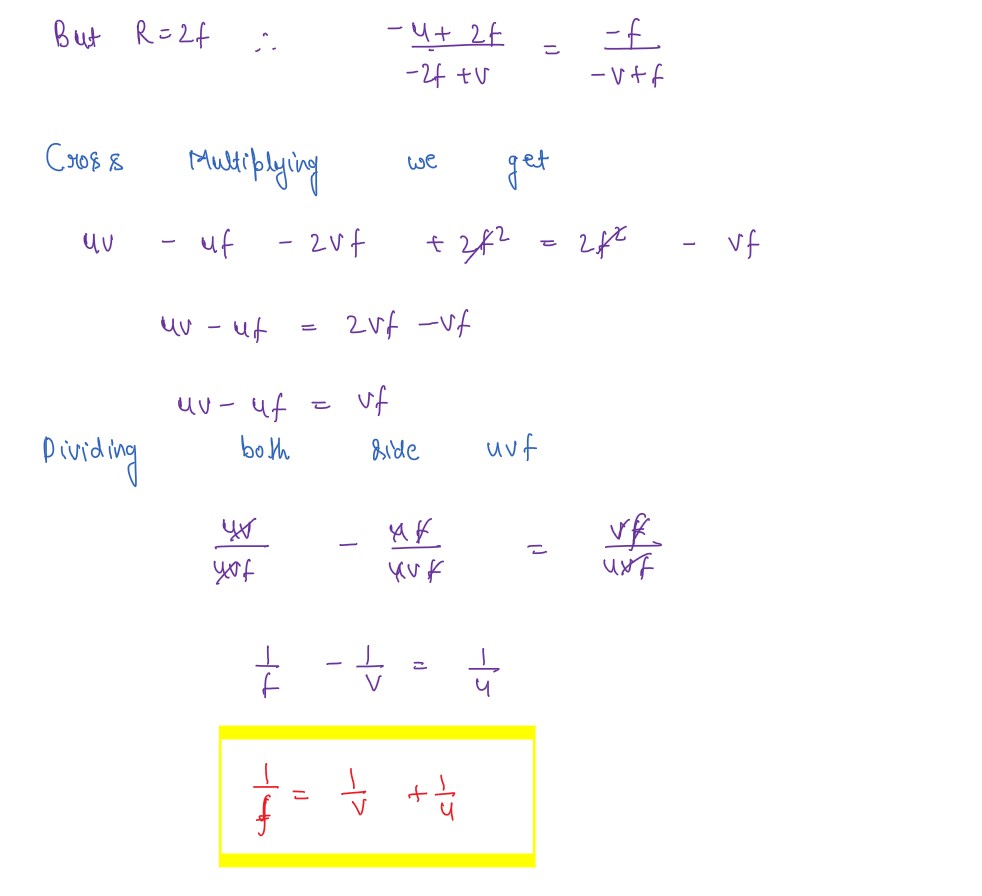

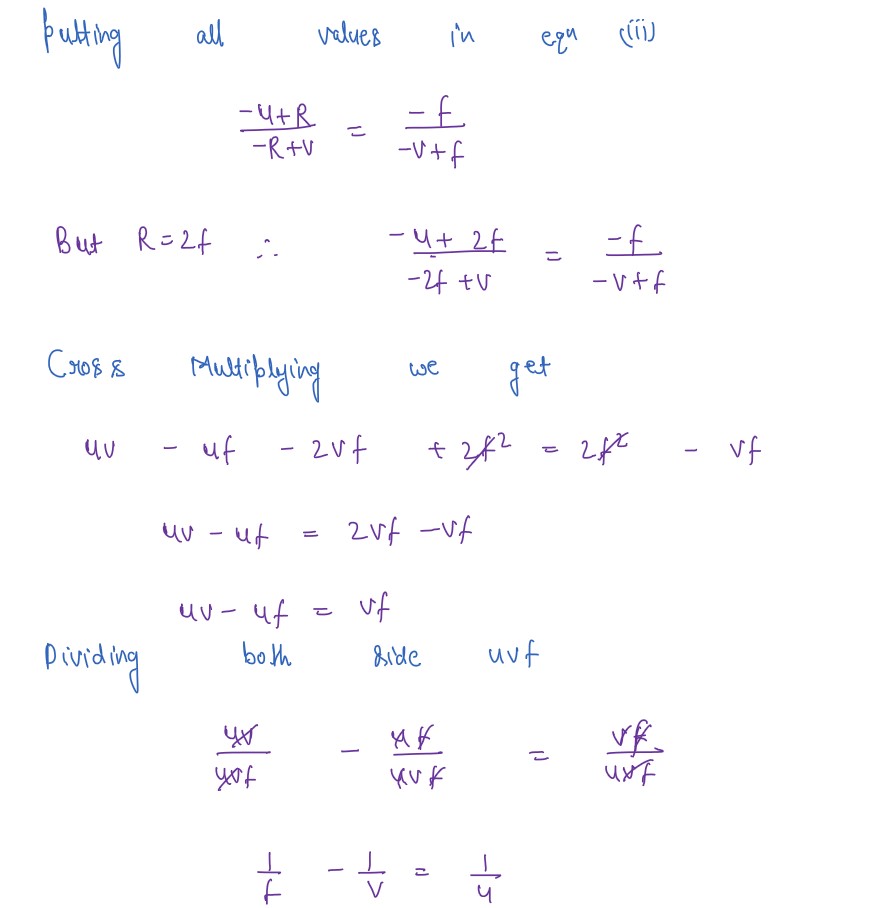

Q4 With the help of a suitable diagram, derive the mirror formula for a concave mirror. Solution

Q5 Establish the relation between object distance, image distance and focal length for a convex mirror. Solution

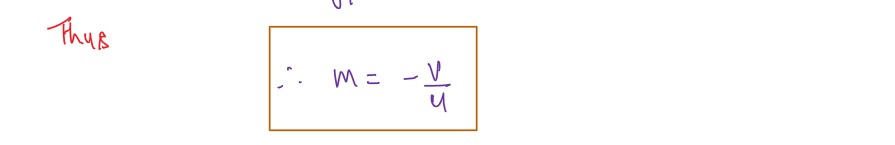

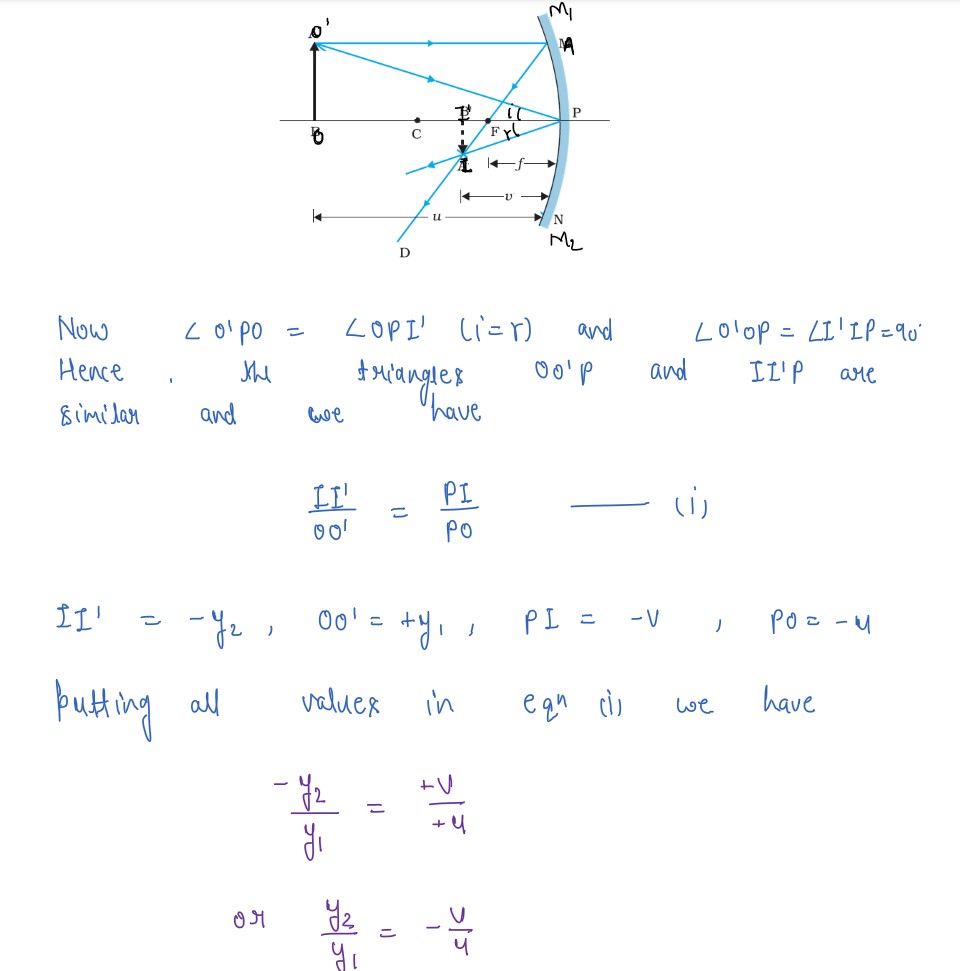

Q6 What is linear magnification? Obtain expressions for the linear magnification of the image formed by a spherical mirror. Solution

Q7 Draw a ray diagram to show the image formation by a concave mirror when the object is kept between its focus and the pole. Using this diagram, derive the magnification form Solution
