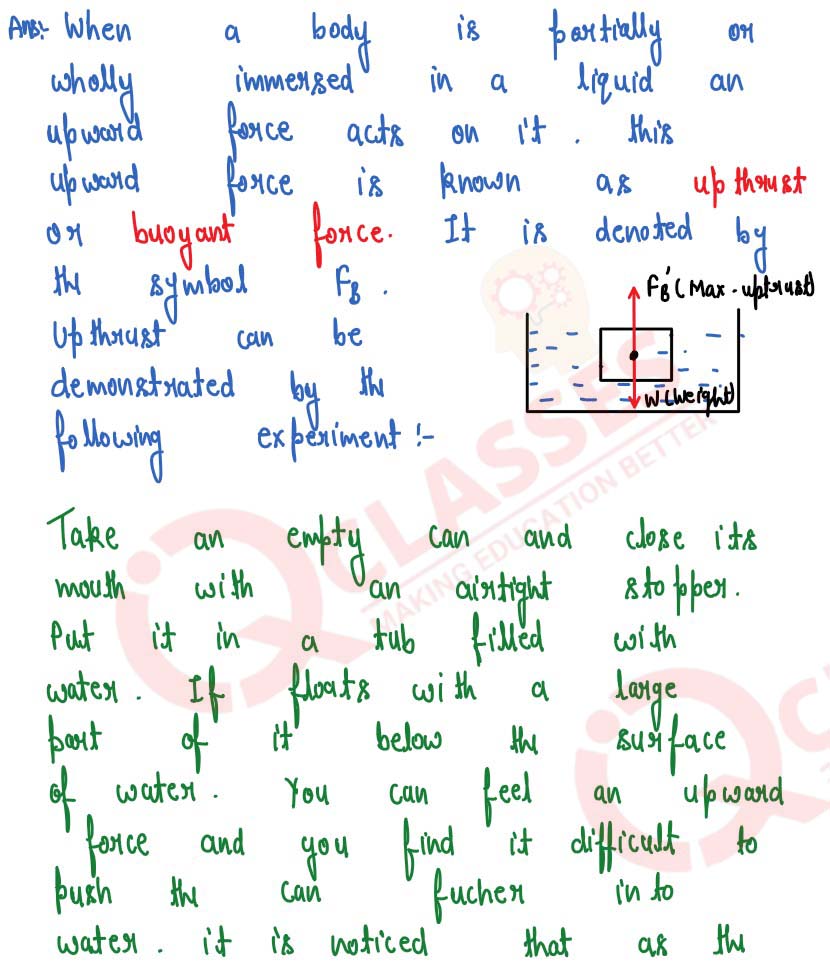

Q1 What do you understand by the term upthrust of a fluid? Describe an experiment to show its existence.

solutions

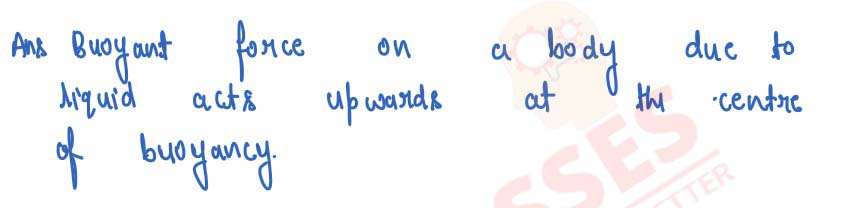

Q2 In what direction and at what point does the buoyant force on a body due to a liquid, act?

solutions

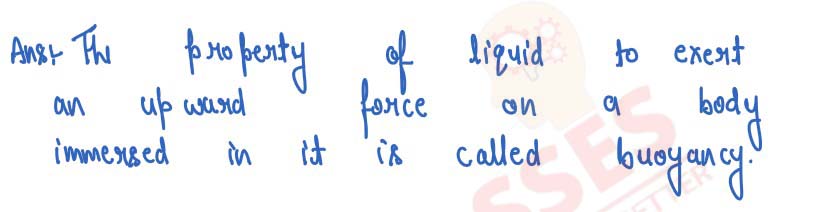

Q3 What is meant by the term buoyancy?

solutions

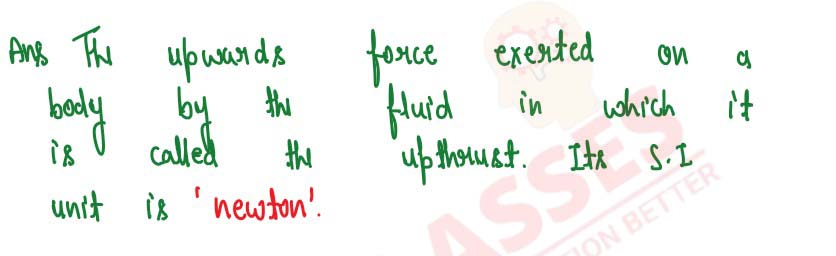

Q4 Define upthrust and state its S.I. unit.

solutions

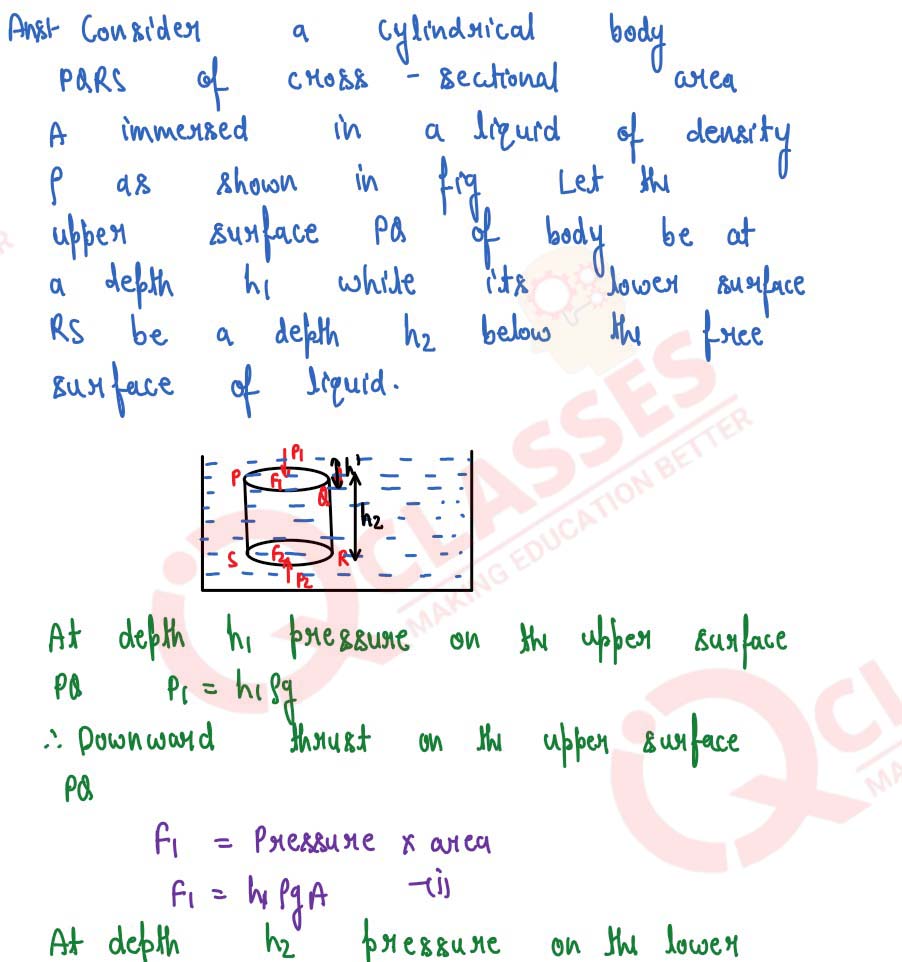

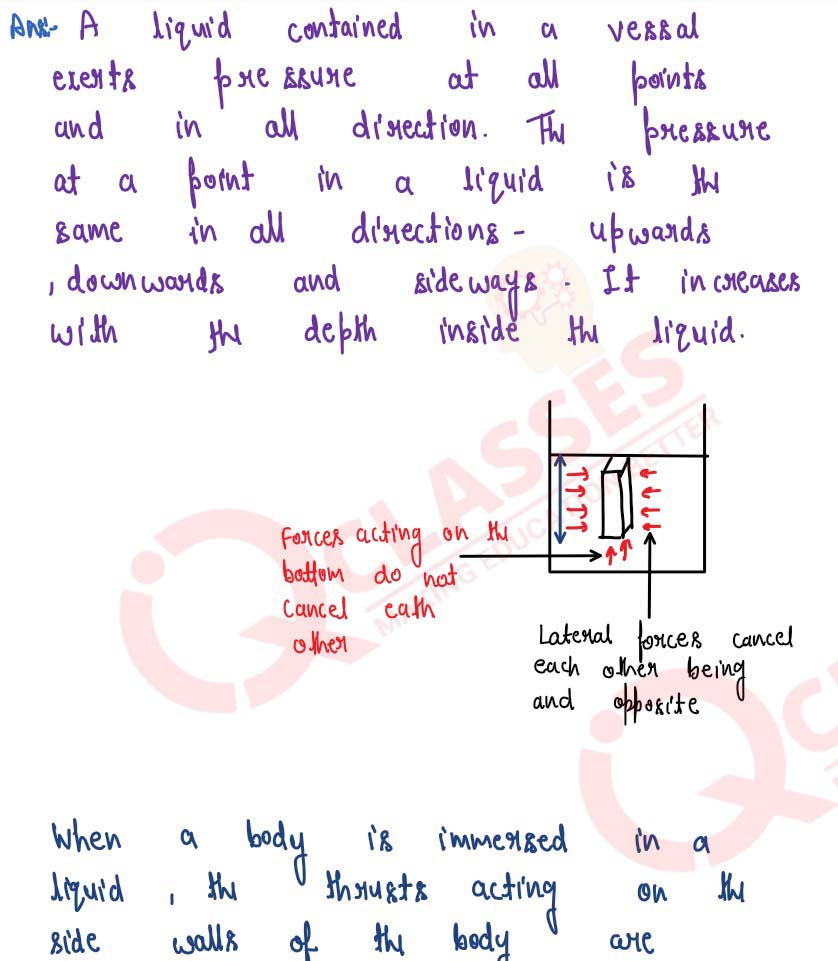

Q5 What is the cause of upthrust? At which point it can be considered to act?

solutions

Q6 Why is a force needed to keep a block of wood inside water?

solutions

Q7 Why is a force needed to keep a block of wood inside water?

solutions

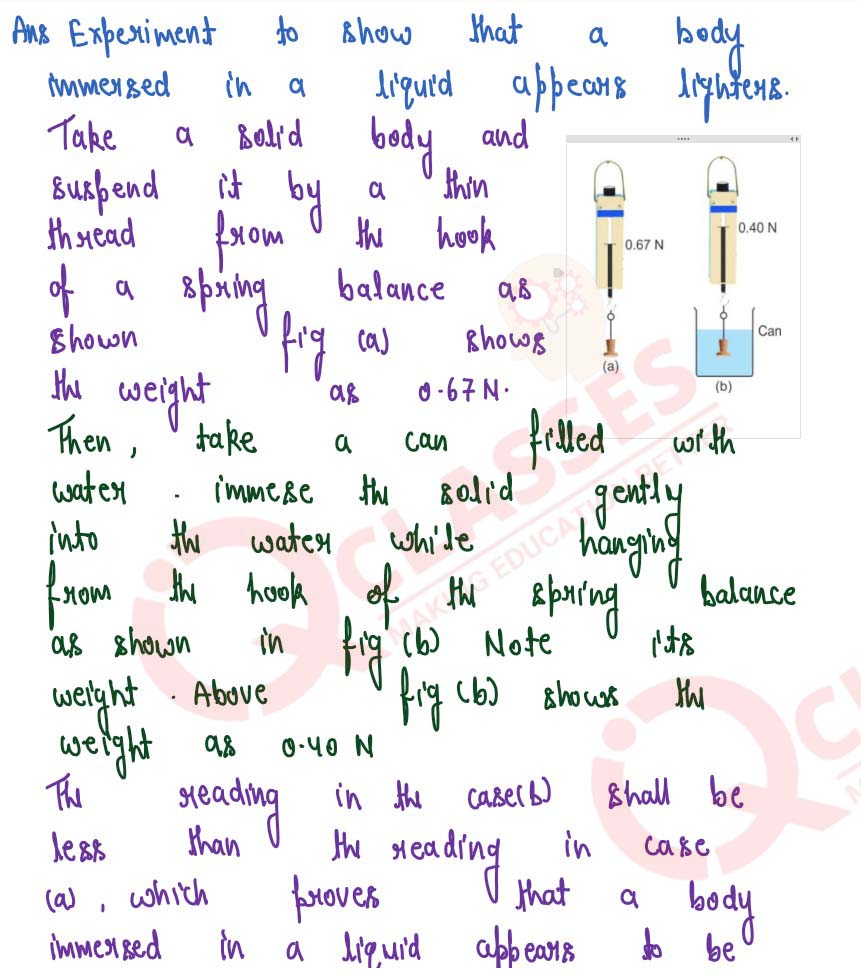

Q8 Describe an experiment to show that a body immersed in a liquid appears lighter than it really is

solutions

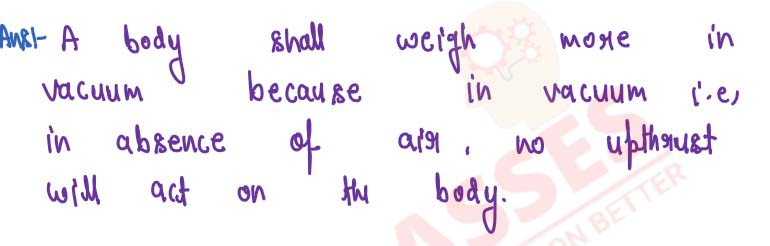

Q9 Will a body weigh more in air or in vaccum when weighed with a spring balance? Give a reason for your answer.

solutions

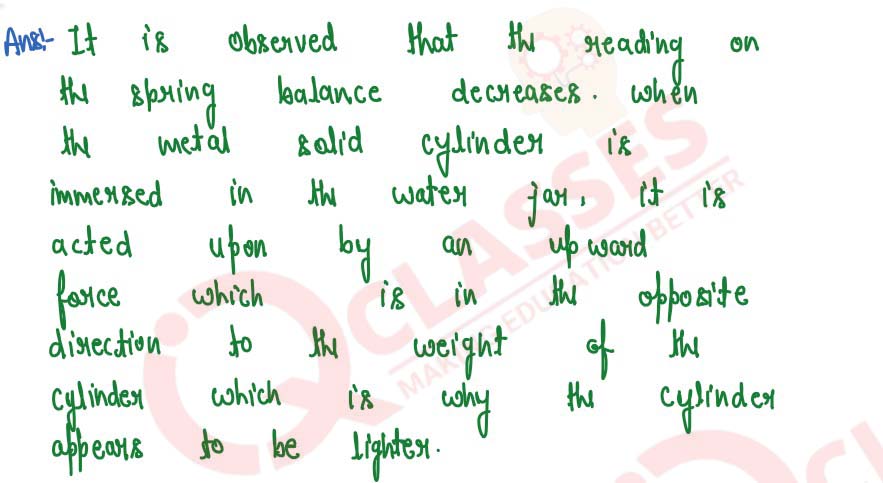

Q10 A metal solid cylinder tied to a thread is hanging from the hook of a spring balance. The cylinder is gradually immersed into water contained in a jar. What changes do you expect in the readings of spring balance? Explain your answer.

solutions

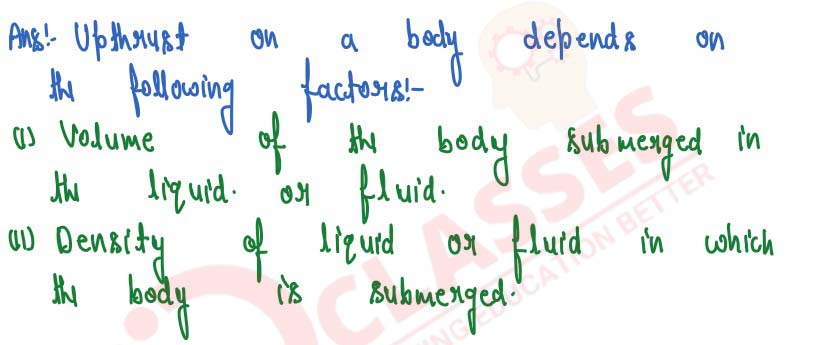

Q11 A body dipped into a liquid experiences an upthrust. State two factors on which upthrust on the body depends.

solutions

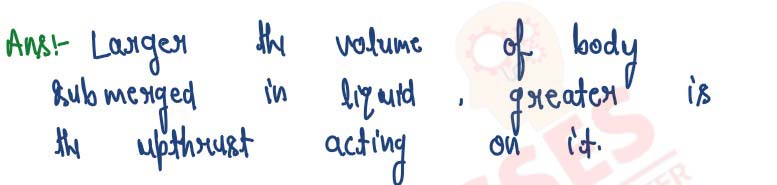

Q12 How is the upthrust related to the volume of the body submerged in a liquid?

solutions

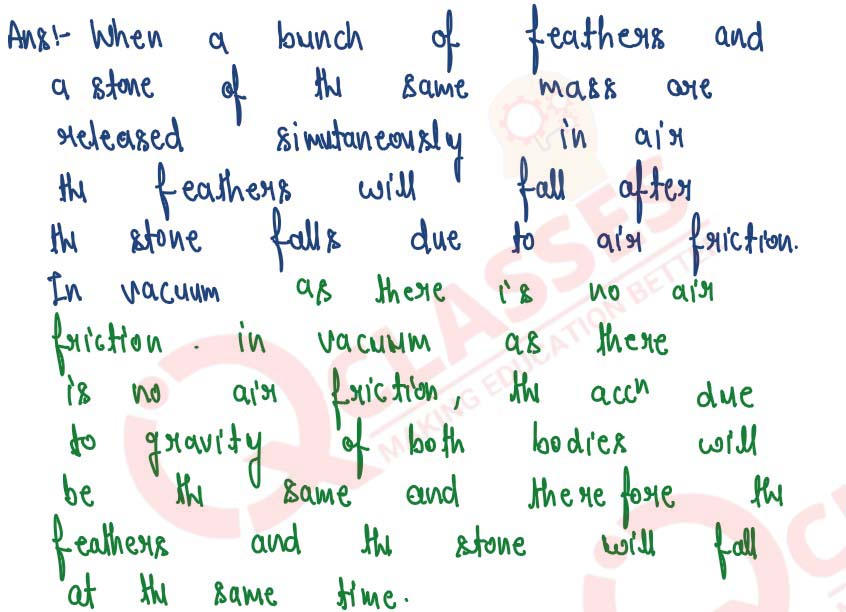

Q13 A bunch of feathers and a stone of the same mass are released simultaneously in air. Which will fall faster and why? How will your observation be different if they are released simultaneously in vaccum?

solutions

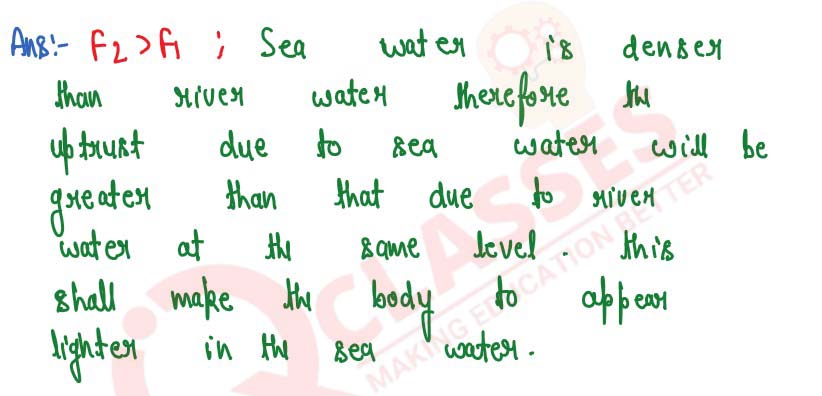

Q14 A body experiences an upthrust F1 in river water and F2 in sea water when dipped up to the same level. Which is more F1 or F2? Give reason.

solutions

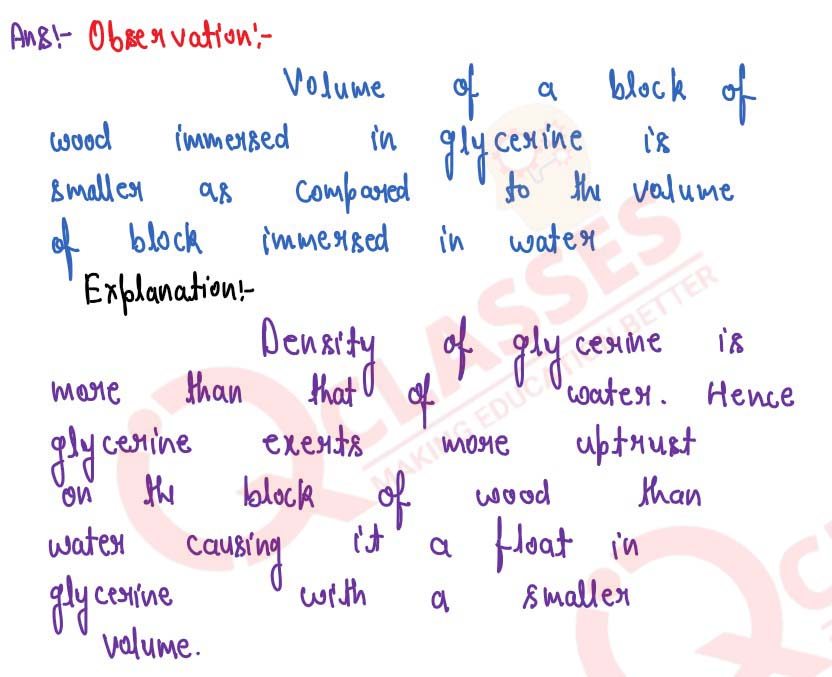

Q15 A small block of wood is held completely immersed in (i) water, (ii) glycerine and then released. In each case, what do you observe? Explain the difference in your observation in the two cases

solutions

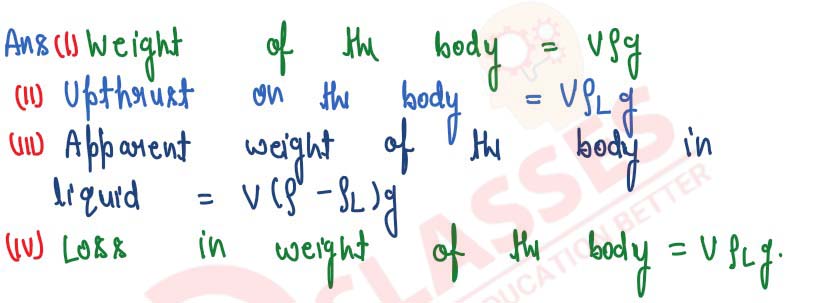

Q16 A body of volume V and density ρ is kept completely immersed in a liquid of density ρL . If g id the acceleration due to gravity, write expressions for the following:
(i) The weight of the body
(ii) The upthrust on the body
(iii) The apparent weight of the body in liquid
(iv) The loss in weight of the body.

solutions

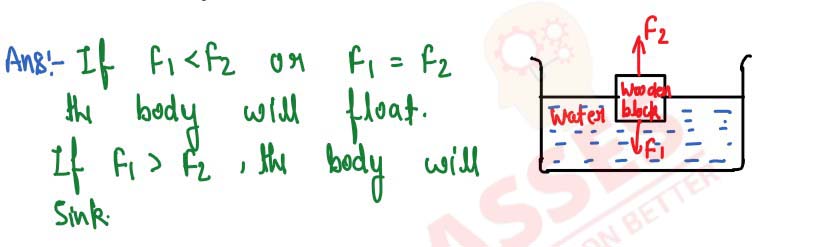

Q17 A body held completely immersed inside a liquid experiences two forces: (i) F1, the force due to gravity and (ii) F2, the buoyant force. Draw a diagram showing the direction of these forces acting on the body and state the conditions when the body will float or sink.

solutions

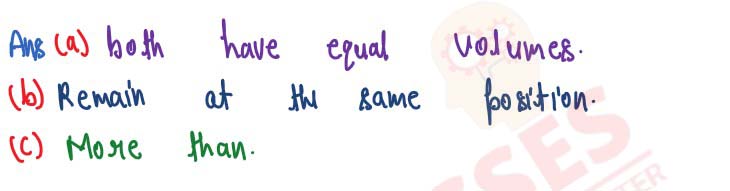

Q18 Complete the following sentences:
(a) Two balls, one of iron and the other of aluminum experience the same upthrust when dipped completely in water if ________________
(b) An empty tin container with its mouth closed has an average density equal to that of a liquid. The container is taken 2m below the surface of that liquid and is left there. Then the container will ___________
(c) A piece of wood is held under water. The upthrust on it will be ___________ the weight of the wood piece.

solutions

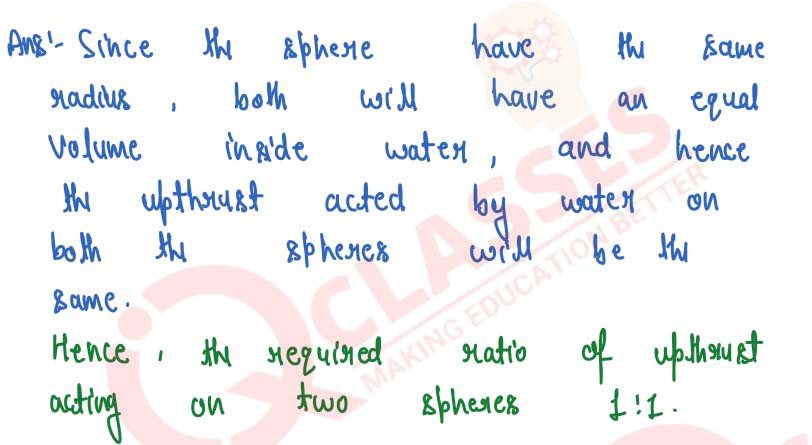

Q19 A sphere of iron and another of wood of the same radius are held under water. Compare the upthrust on the two spheres.

solutions

Q20 A sphere of iron and another of wood of the same radius are held under water. Compare the upthrust on the two spheres.

solutions

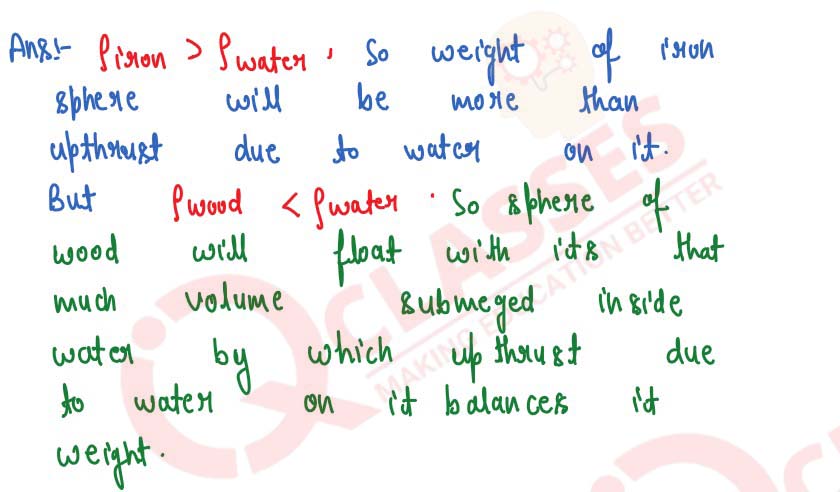

Q21 A sphere of iron and another of wood, both of same radius are placed on the surface of water. State which of the two will sink? Give reason to your answer.

solutions

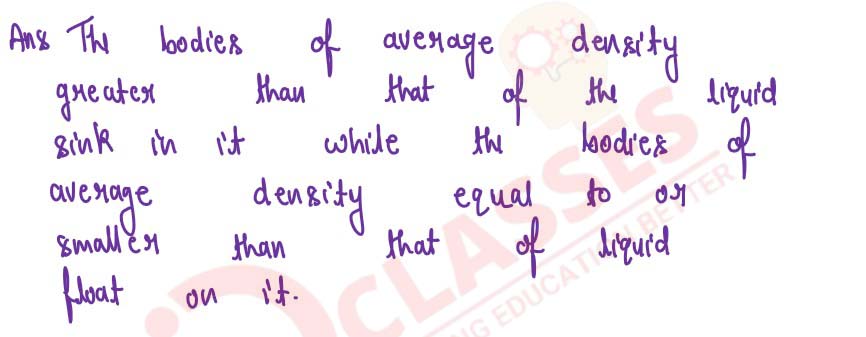

Q22 How does the density of material of a body determine whether it will float or sink in water?

solutions

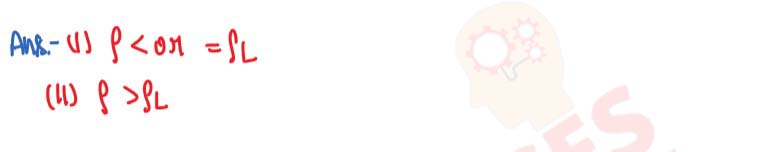

Q23 A body of density ρ is immersed in a liquid of density ρL. State condition when the body will (i) float, (ii) sink, in liquid.

solutions

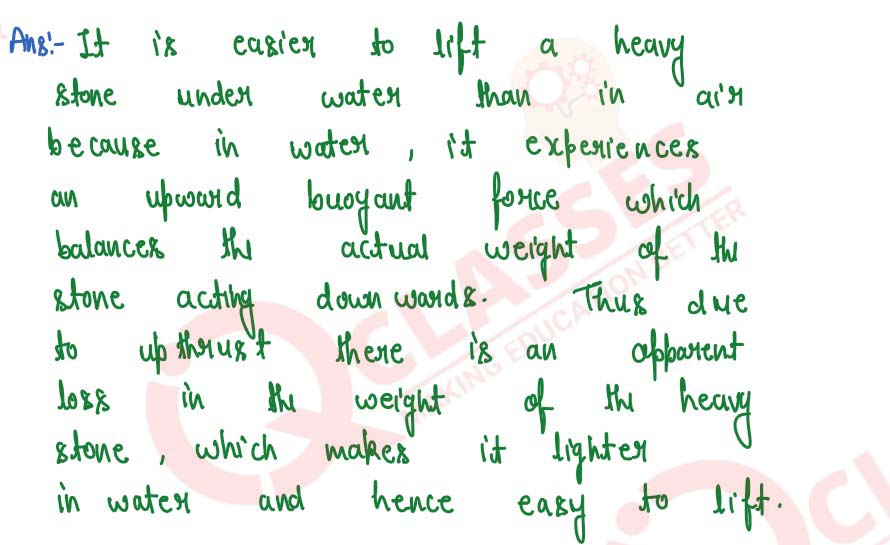

Q24 It is easier to lift a heavy stone under water than in air. Explain.

solutions

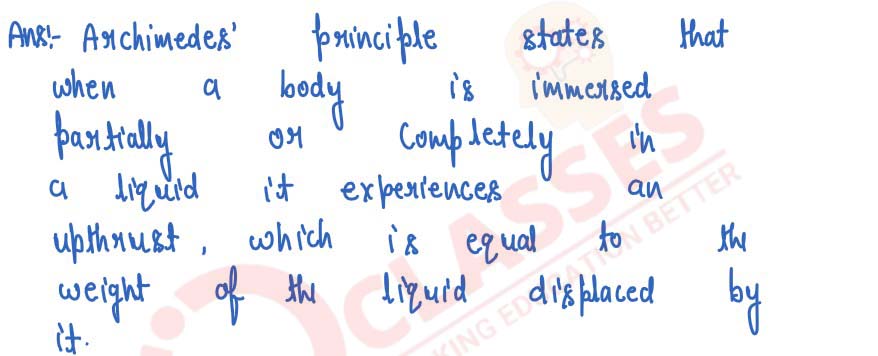

Q25 State Archimedes’ principle.

solutions

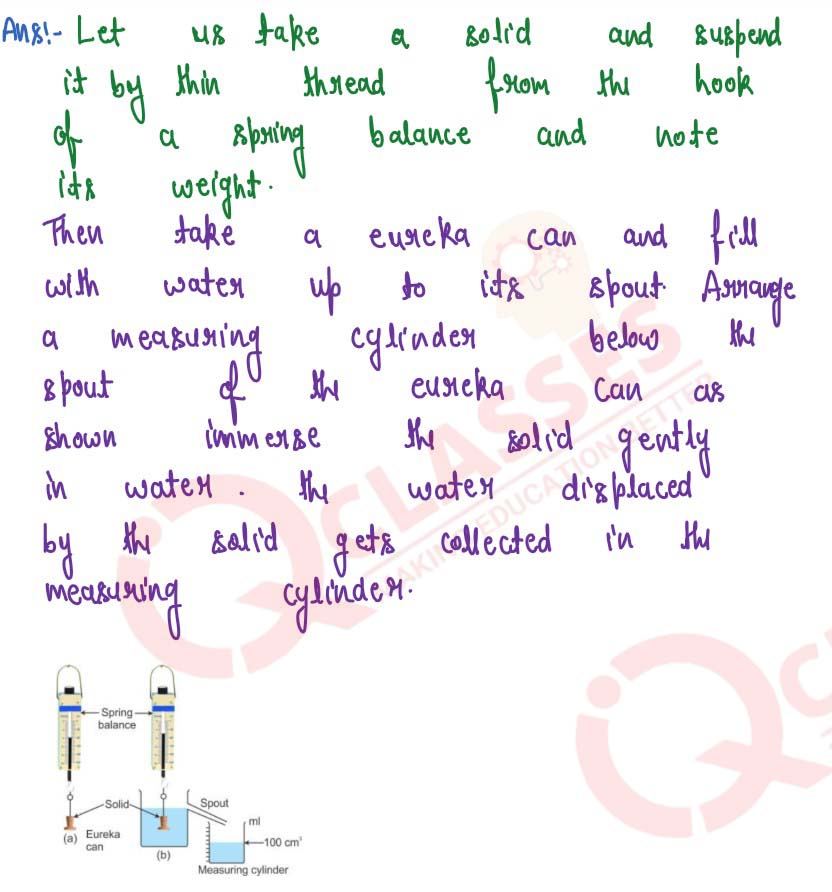

Q26 Describe an experiment to verify Archimedes’ principle.

solutions

Multiple Choice type Questions :

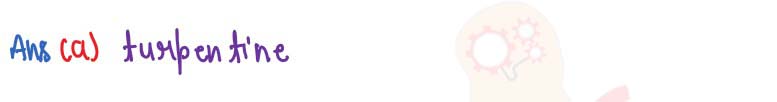

Q1 A body will experience minimum upthrust when it is completely immersed in:
(a) Turpentine
(b) Water
(c) Glycerine
(d) Mercury

solutions

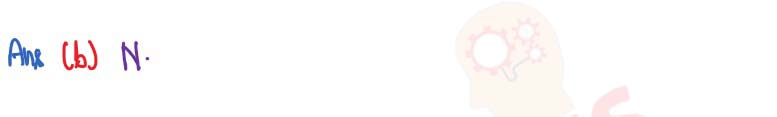

Q2 The S.I. unit of upthrust is:
(a) Pa
(b) N
(c) kg
(d) kg m-3

solutions

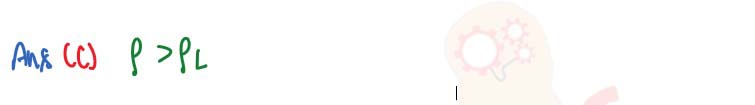

Q3 A body of density ρ sinks in a liquid of density ρL. The densities ρ and ρL are related as:
(a) ρ = ρL
(b) ρ < ρL
(c) ρ > ρL
(d) nothing can be said

solutions
